The urban equation
Urban Planning Studio | 2014 | Ofakim, Israel
"The Urban Equation" project aims to develop a parametric equation applicable to any city's street network to facilitate the creation of a high-density urban area.
This equation is based on successful urban qualities observed in cities worldwide. It incorporates the ratio of open public space to population and built area.
The city of Ofakim serves as the test case for this equation. Ofakim has a population of 25,000 and spans 2,500 acres, with much of its unplanned open space remaining unused. Future plans by the City Hall propose doubling both the city's area and population, focusing solely on new developments. These plans could result in reducing the current population density, making the city less desirable. A less dense urban environment often reduces the chances of commercial success, as businesses rely on a critical mass of people to sustain them. Additionally, lower density can lead to the creation of areas that feel like an afterthought, lacking cohesive planning and integration with the rest of the city. This can result in inefficient use of resources and infrastructure, as well as a diminished sense of community and vibrancy.
The Urban Equation presents an innovative solution to maximize population density within the existing urban area, preventing urban sprawl and preserving key elements of the city's original character.
Urban Planning
Street network - Existing
Nolli Map - Existing
Proposed Use Plan
Street network - Proposed
Nolli Map - Proposed

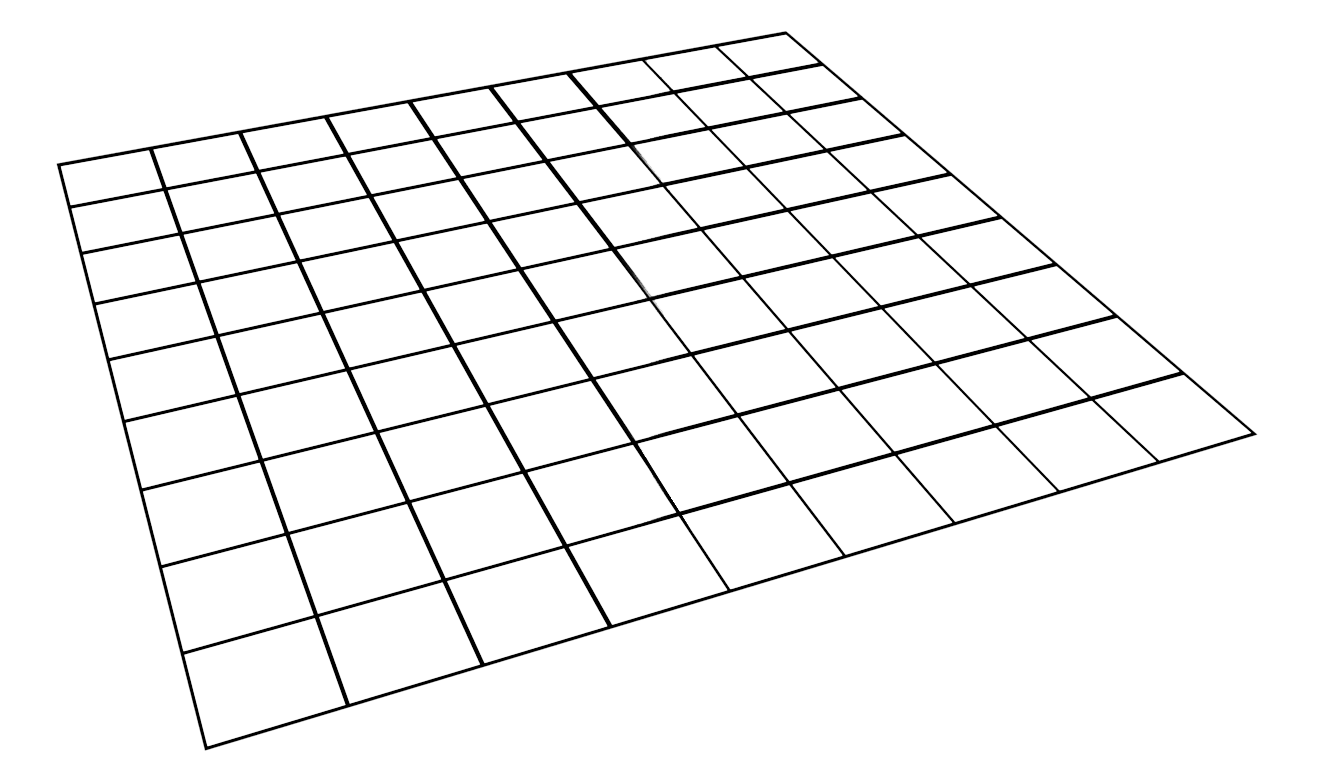

Using Grasshopper tool, a programming software with a 3D interface, it is possible to implement mathematical rules on a visual shape.
The system creates the city’s suggested built volume and area while maintaining high public density values as well as land cover percentage, according to the values one inputs into the equation.
Proposed Added Public Transport
Development Phases

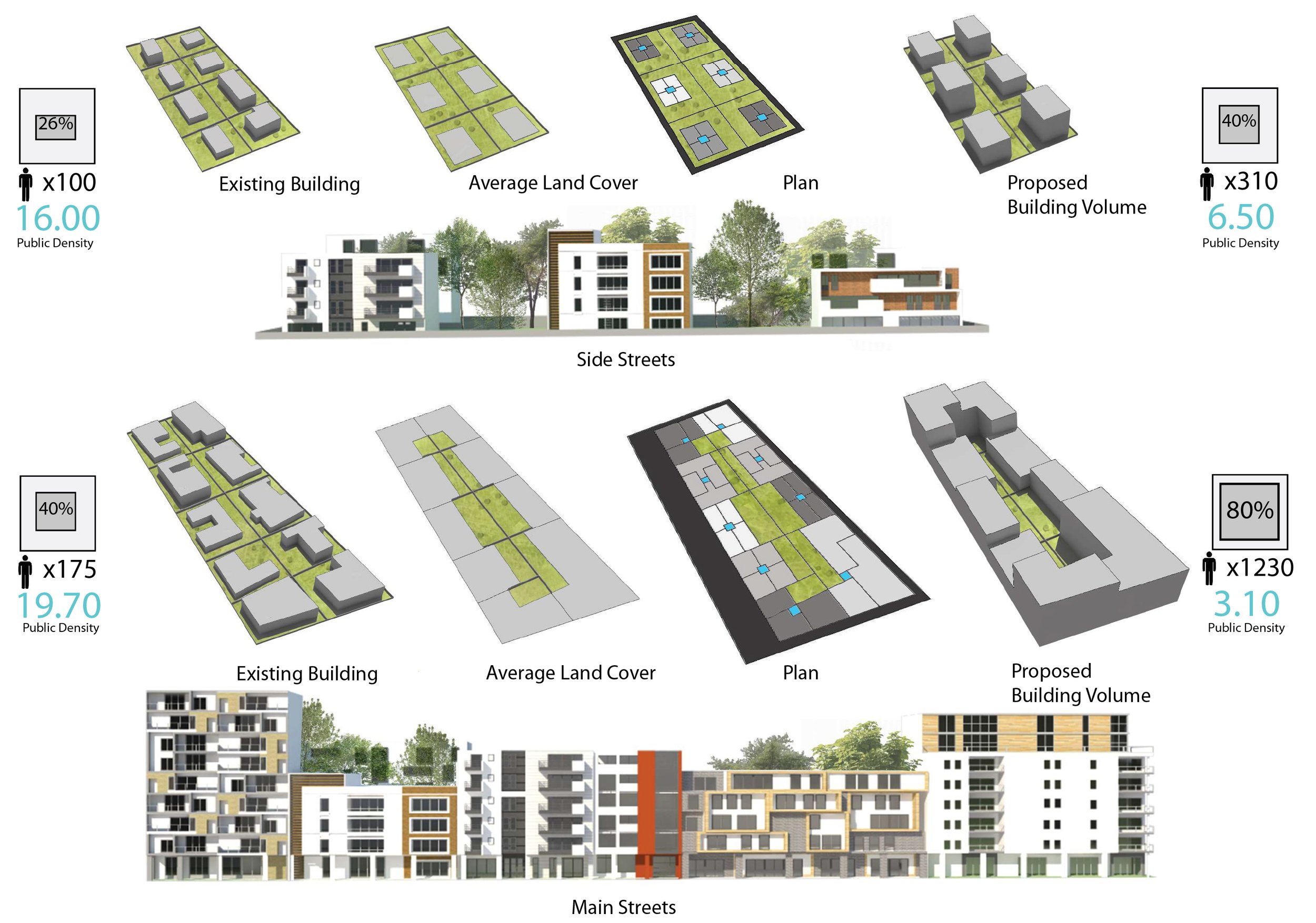

Block Development
specific sites re-development

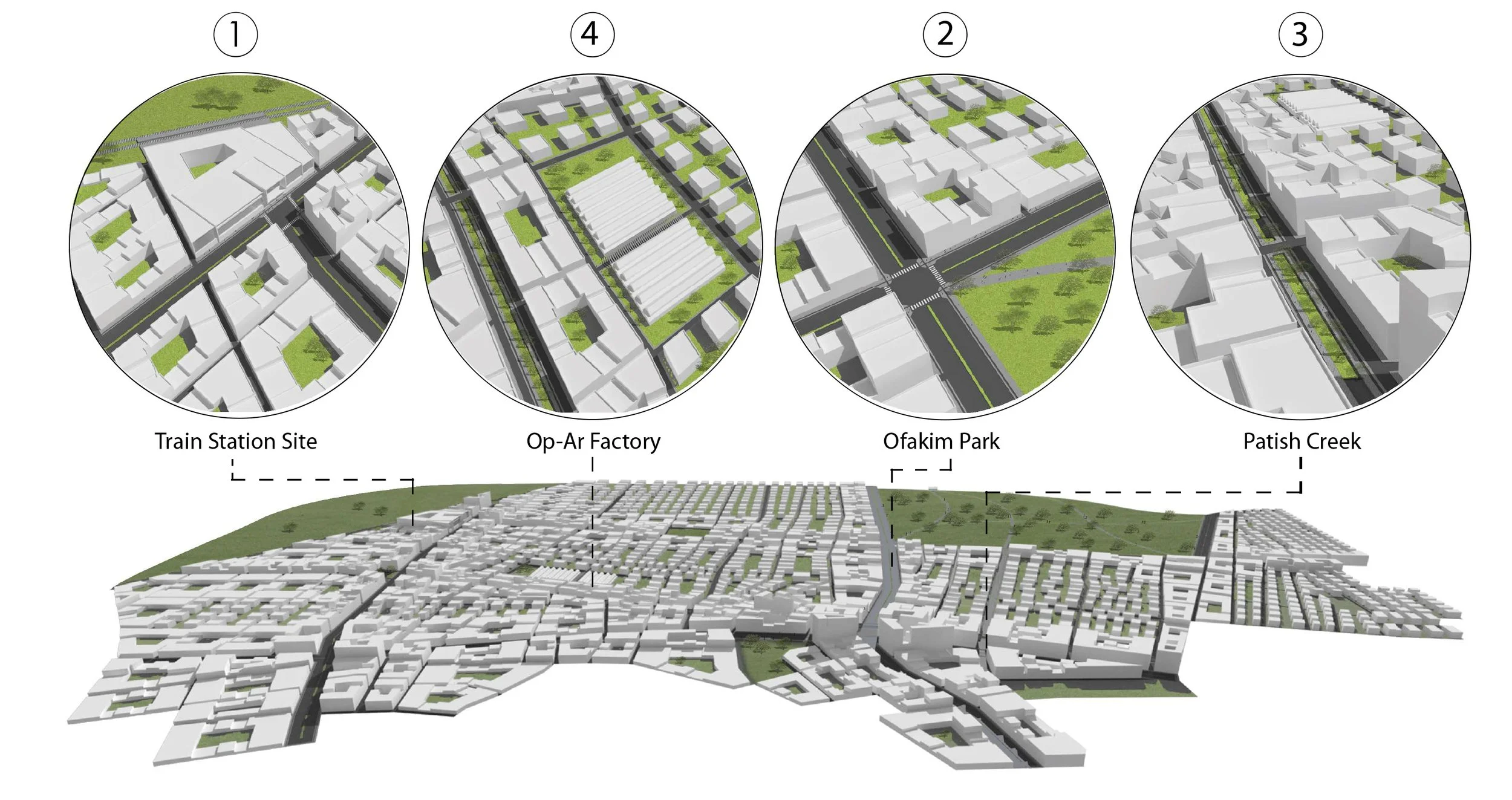

In the final stage of the project, we focus on four key areas within the city of Ofakim. Each site possesses distinct and unique potential for both residents and visitors. By applying the principles of the Urban Equation, we can identify and amplify the positive characteristics of each site, further enhancing their value and impact.
(1) City’s Train Station
(2) Ofakim Park
(3) Patish Creek
(4) Op-Ar Factory Re-Use

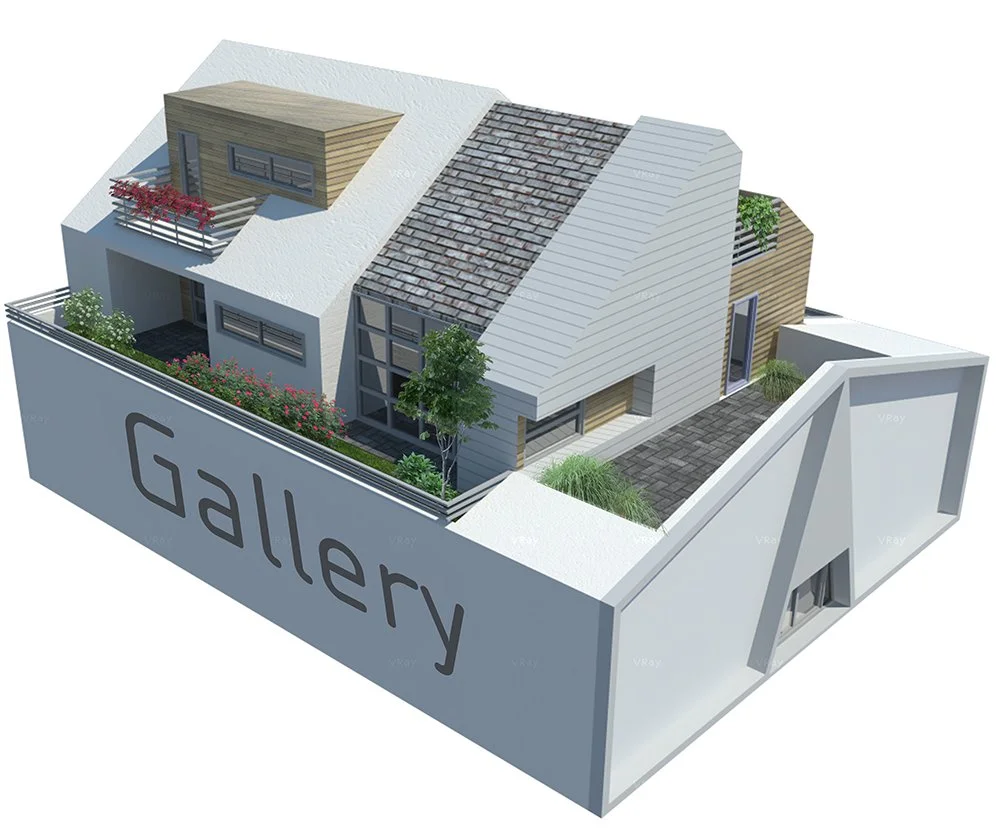

Since its closure in 1968, the Op-Ar factory has remained abandoned, its doors shut. The project proposes a transformation of the vacant factory space. Galleries and commercial areas will be integrated into the original structure, utilizing its existing framework, while new residential units will be constructed on additional upper floors. The upper levels will be strategically set back, preserving the original building's silhouette and creating balcony spaces for residents
